Our modular power platform brings classic Power Delivery Power Bank features to your project, plus it brings the amazing and necessary digital telemetry and control using common data bus, such as I2C. Industrial build with subzero temperatures available.
All the classic Power Bank features
The base model features one bidirectional USB-C 100W Power Delivery port. The Power Bank features can be controlled and monitored with an on-board low power companion MCU or to be connected to your other system controller as the power features work standalone if no monitoring is required.
All the stock Power Banks are provided as a consumer product with ZERO modularity, limited temperature range and NO data telemetry for diagnostics.
Our modular platform offers a convenient solution for all of these limitations.
A Model For Every Application
Our modular solution offers a variety of Power Delivery PS Source ports, power configurations, battery chemistry types and capacities to be used.
Discover The Key Features
Tailored Solutions & Customization

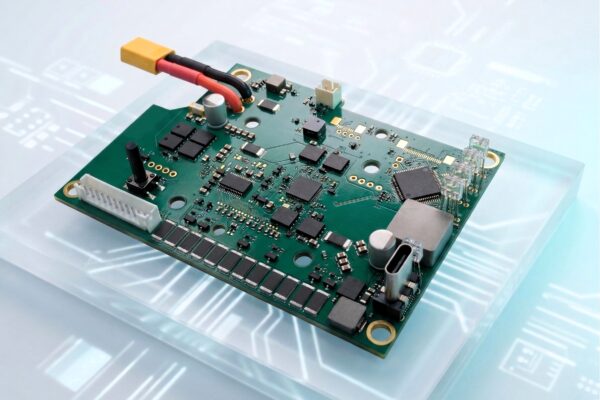

The NecoPower-PD Power Bank platform IP can be licensed for your own implementation or provided and delivered fully working and tested, as ready-to-fit electronic boards.
Discover Products Based on NecoPower-PD Platform

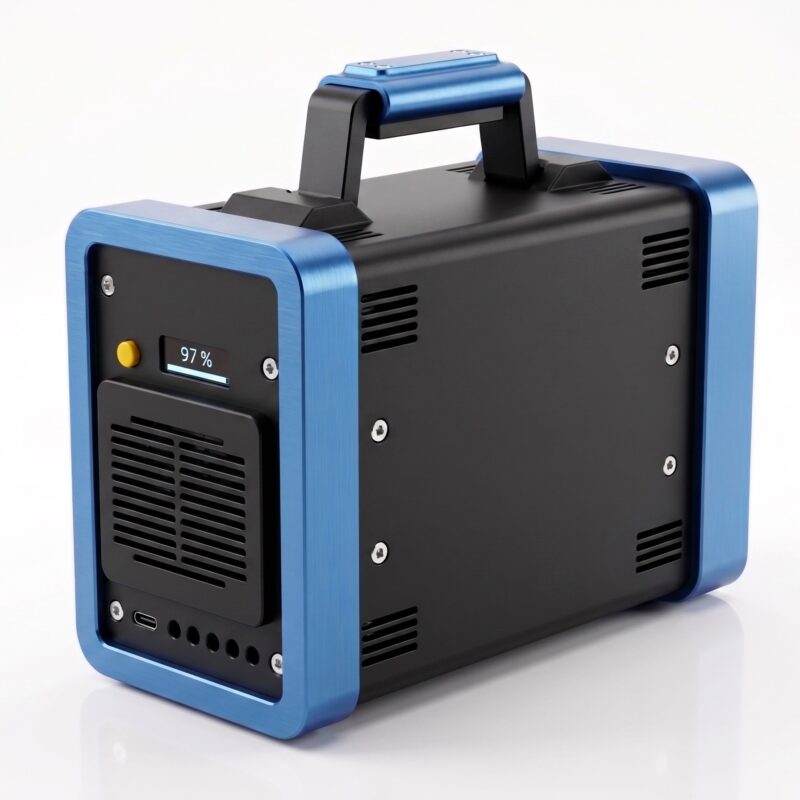

The NecoPower-PD NIB-660 is the first mass-production-ready Power Bank using this power architecture. It has 6x Sodium-Ion (NIB) cells, 10Ah each, resulting in ~145 Wh usable capacity.
The amazing flexibility of the NecoPower-PD platform allows using specialized Sodium-Ion battery chemistry with LTO cells as optional ultra-high-end.
This stock demo product offers:
- 1x 100W PD port for Charge; 65W Discharge
- Small OLED screen for basic monitoring
- Extra Wide Operating Temperature Range – TBD (~ -20 to 70° )
- Extremely Durable (Nylon+Carbon Fiber) Enclosure With Soft Grips (TPC88A) for non-slip stationary use and protection
- RGB LED Status Lights that provide common power bank feature
- Buzzer for event signaling provides audio feedback
- One Button for a short display activation for device / battery checkup
- Internal 6x 10Ah Sodium-Ion battery with per-cell temperature, voltage monitoring and cell balancing
- Expansion Module slot for more ports; different display or control; UART/I2C/CAN I/O of choice
- High Quality Electronics with strong EMI/EMC mitigation and filtering
- Developed, Manufactured and tested in Czech Republic

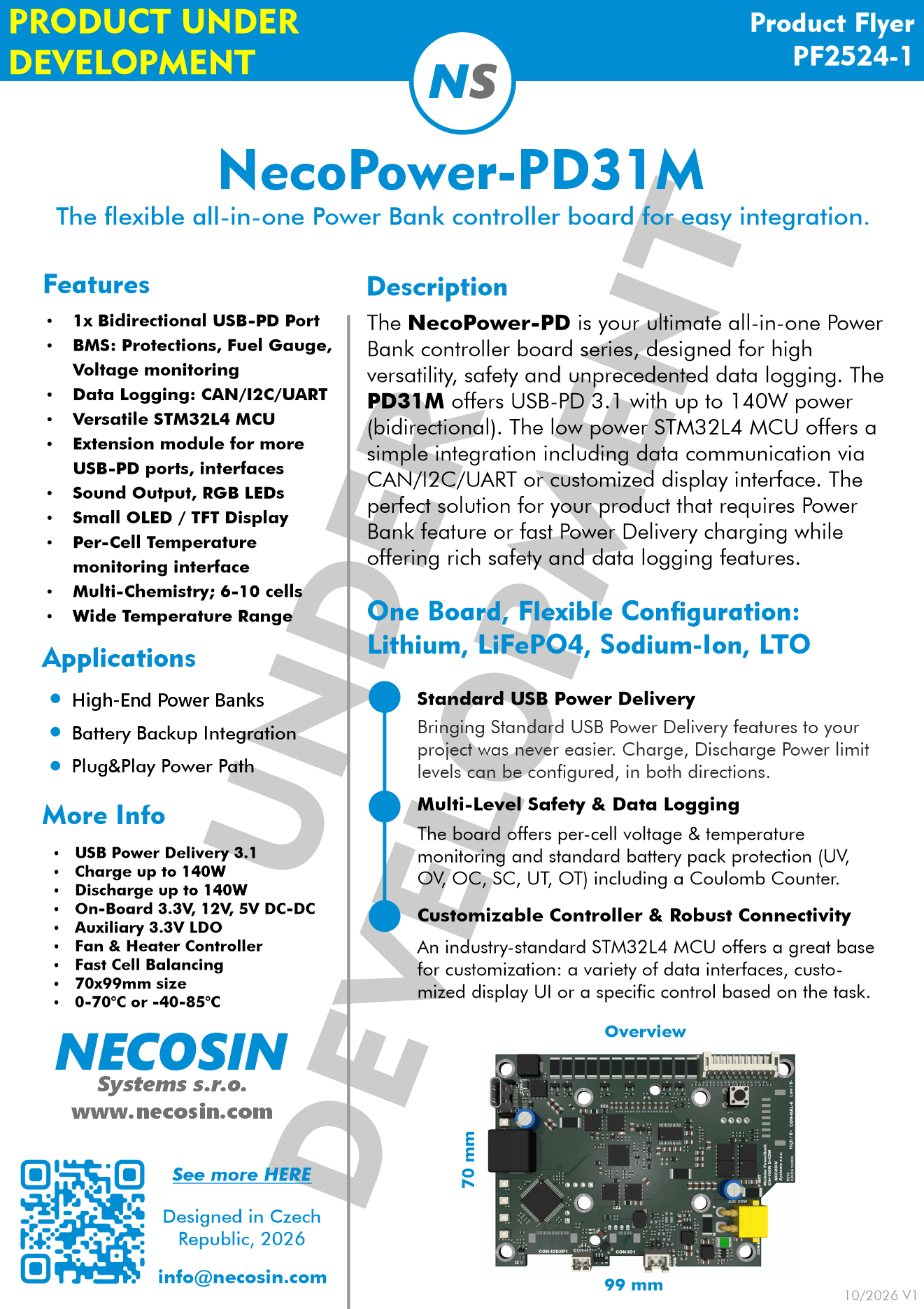

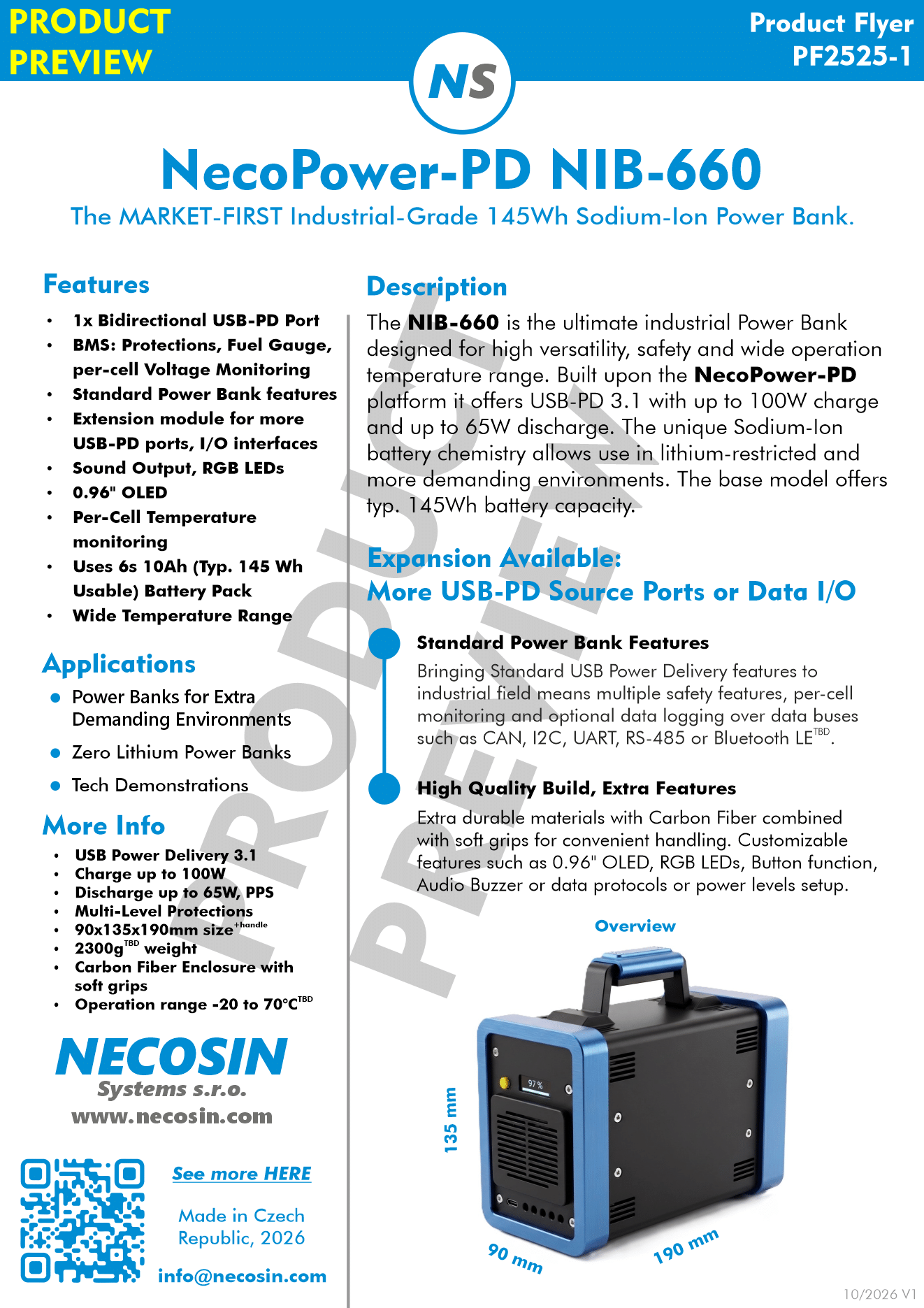

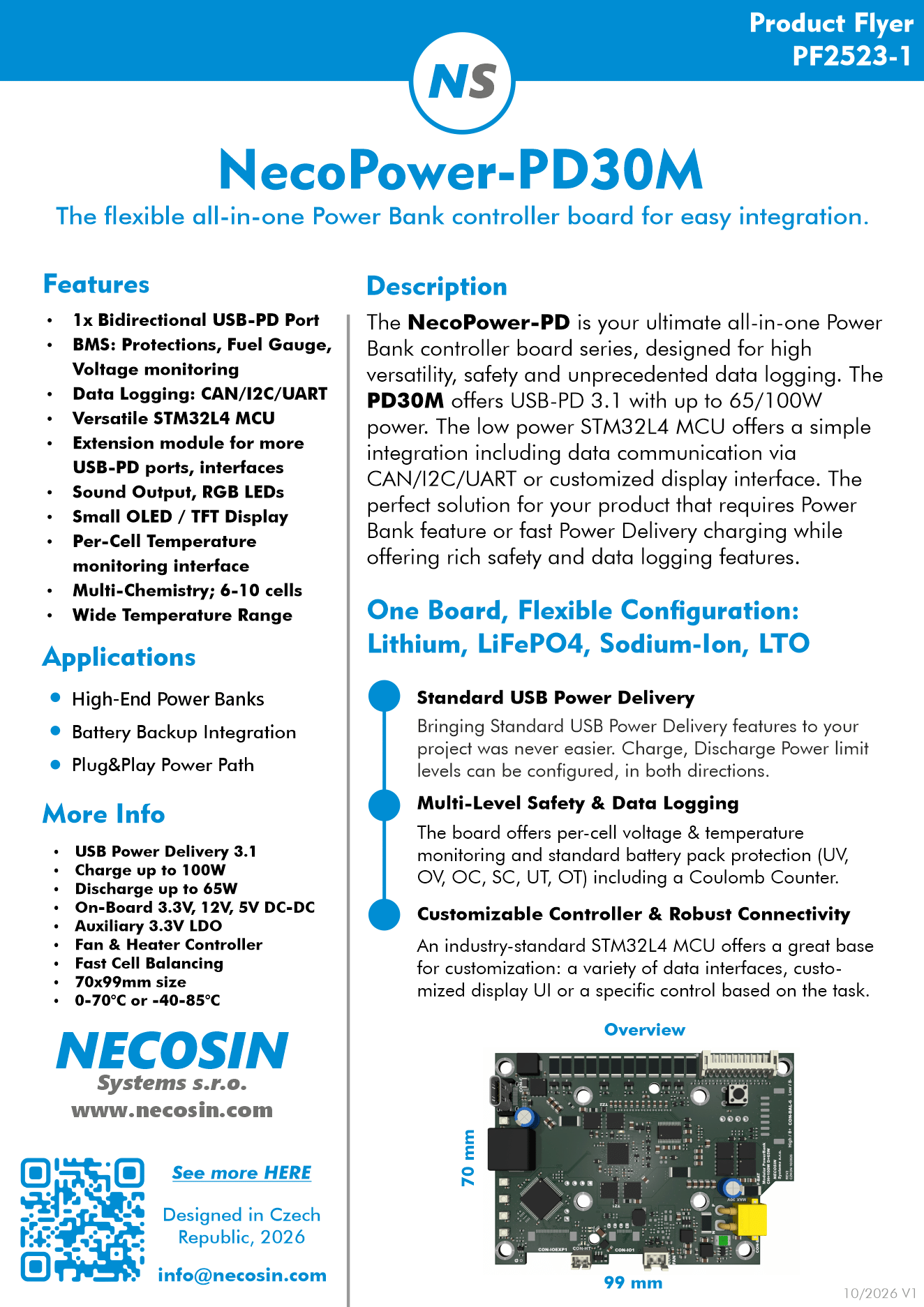

Explore More With Product Flyers (Click for full size)
Contact us for more details
Currently the demo product is not ready for legal market distribution as it must comply with all the product regulations (pending). Therefore it now must be only considered a fully working prototype and not a market-ready product.
With backorders and more manufacturing contracts this process will be easy to achieve.
