EthLinx Pro Duo RS-485
The unique and innovative way to bridge TCP/IP applications or scripts and serial buses without the need of Ethernet network – EthLinx simply connects via USB-C and creates the USB Virtual Ethernet Network in your computer. No drivers needed, the ultimate PLUG&PLAY experience.
EthLinx works FULLY OFF-LINE – it DOES NOT require an internet connection. EthLinx DOES NOT send any data to the internet. The network link is purely between your PC and EthLinx.
Instant Network over USB
No Drivers. No Config.
Connect the USB-C port and EthLinx instantly appears as a network card. It creates a robust virtual network link automatically, bypassing legacy COM port issues.
Scalable, Multi-OS
No proprietary SW needed
- Use your favorite web browser to access the Web UI to configure the ports parameters.
- Use your favorite TCP-socket client software to exchange data.
- TCP Multi-client connections: Listen to the data traffic on the bus
- Available for Windows Vista, 7, 8, 10, 11 or Linux-based OS's
Industrial Precision
Top Build Quality

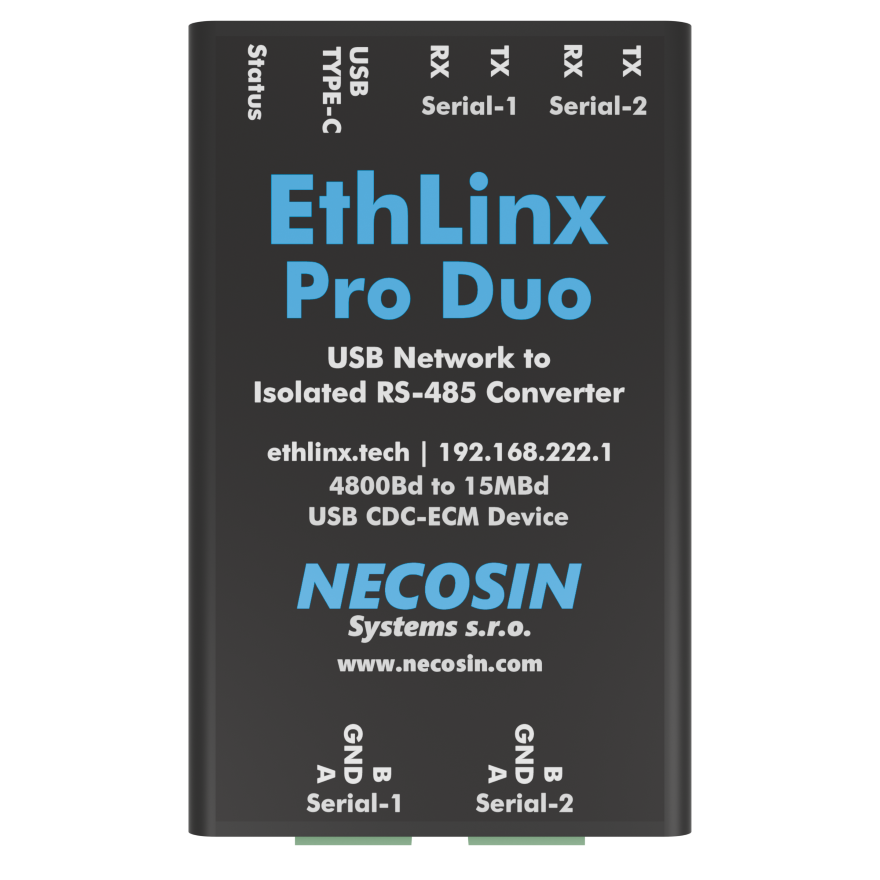

Designed for the harsh reality of the field. The enclosure is compact (50x80mm) yet rugged, with clear UV-printed labeling for immediate device and pinout identification.
Rich Product Line
Variety of interfaces offered
We released devices with the most demanded parameters sets.
Feel like you need different buses, speed rate, more interfaces per device or further localization? Contact us.
Key Features

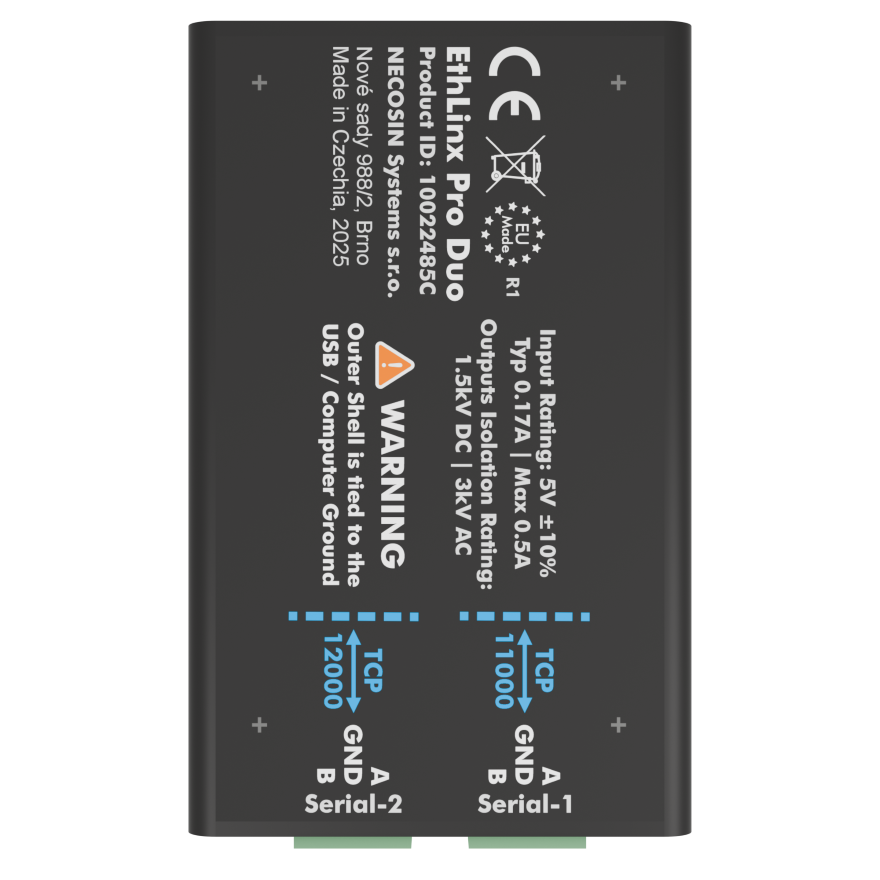

- Interfaces: 2x Independent, Fully Isolated TIA-485-A Compliant, Overvoltage Protected
- Available in Windows (Vista and newer) version (RNDIS USB Device Class) and Linux/Mac (CDC-ECM USB Device) version
- Multilingual UI and Support Documents: English, Czech, Spanish, German, French, Dutch, Italian
- Web UI Accessible from any modern browser
- TCP API For Transparent Data Transfers
- HTTP API For Configuration
- Transfer Statistics
- Rugged Industrial Overvoltage Protection
- Concurrent TCP Sockets per interface: 4
- Double Buffering, max. TCP message size (Window): 16kB
- Baudrate range: 4800 to 15M (Any value)
- Data Bits Options: 8 or 9
- Parity Options: None, Odd, Even
- Stop Bits Options: 1 or 2

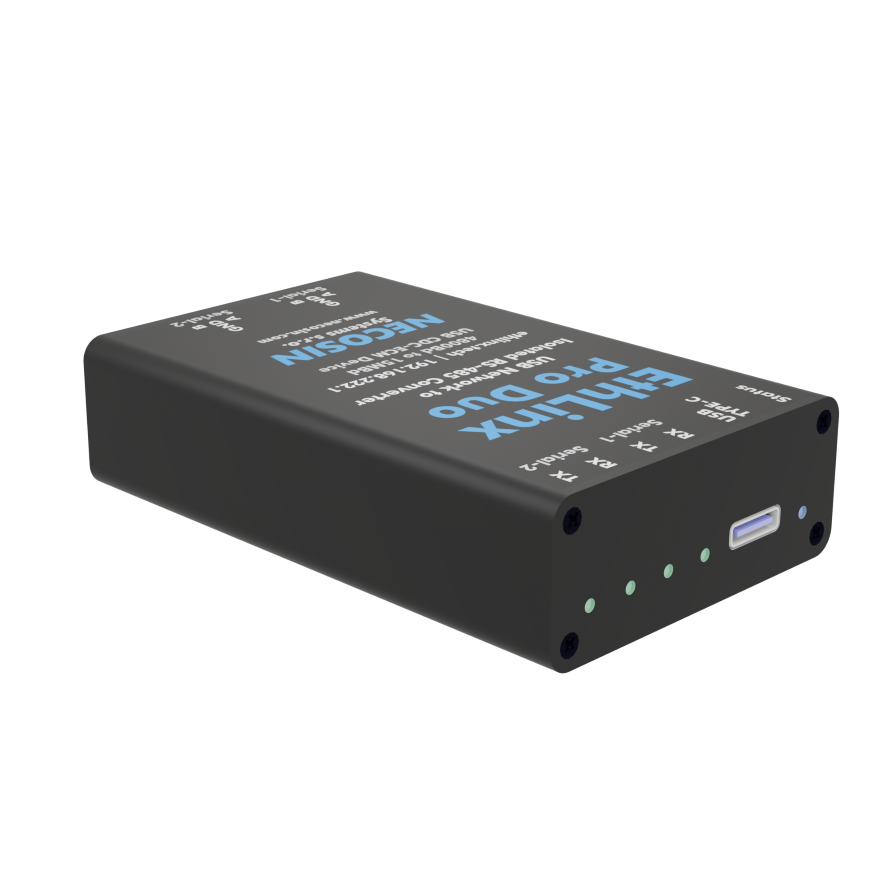

- Color LED Signaling, 1 LED for each data direction

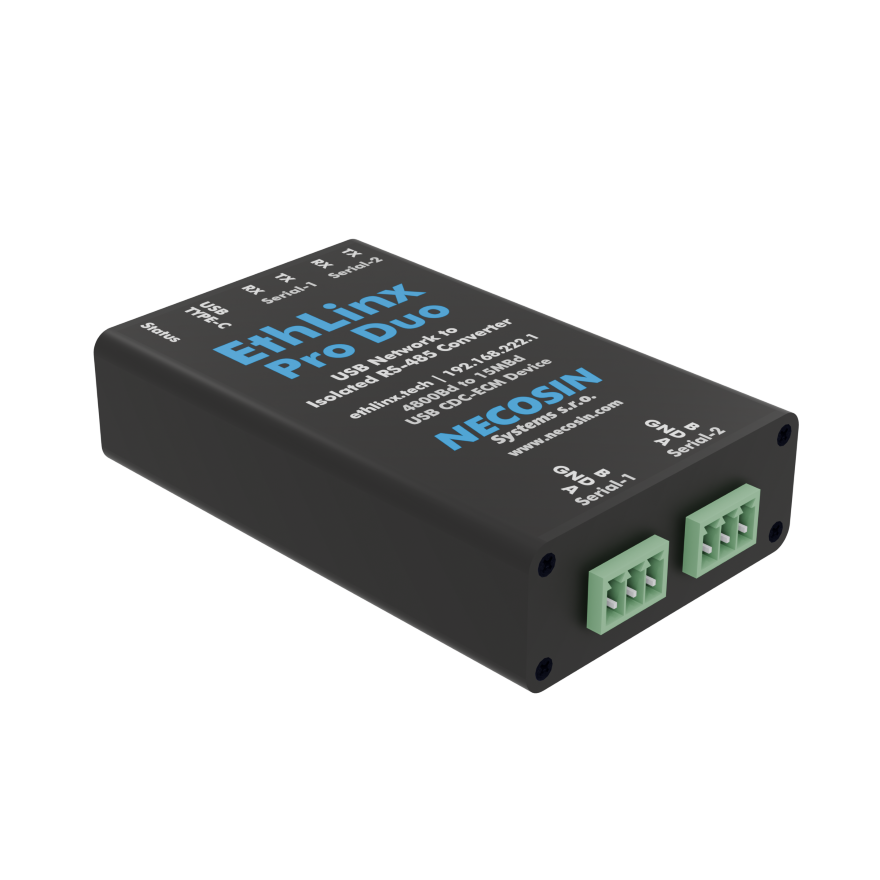

- Uses standard 3.5mm 3-Position Insert Terminal Block
- Developed, manufactured and tested in Europe

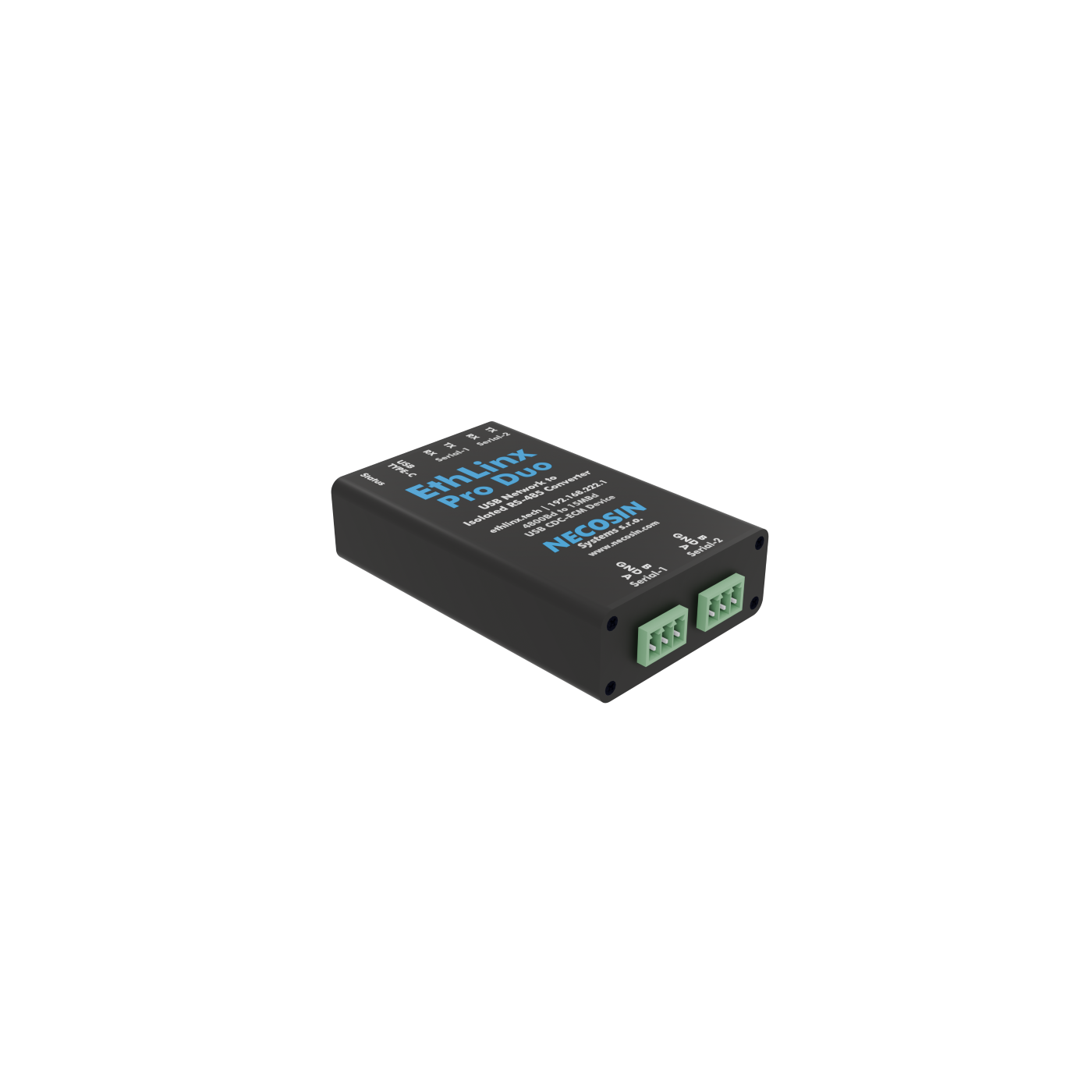

See the 3D Model
EthLinx Pro Duo RS-485
Drag to rotate. Scroll to zoom.
